Dynamics of Water Discharge from a Cylinder

Home \ experiment
Student Manual

This experiment demonstrates the dynamics of water owing out of a tank. Using the rate change of mass for an emptying cylinder, we investigate the application of Bernoulli's equation and the resulting Torricelli's theorem. We also observe the effects of constriction on the parcel of water owing out of the tank. Students will investigate fluid dynamics, pressure and will relish how a phenomena as simple as water owing out from a tank can lead to rich dynamics that can be explored mathematically.

Software Code Mass Record
Sample Results Linear relationship between the square of velocity and height
Experiment Code 1.18
Version 13 April 2016

Further Readings and References

  • Physics for Scientists and Engineers with modern Physics, Raymond A. Serway, John W. Jewett, Jr., 465-483, (2010).

Pictorial Procedure

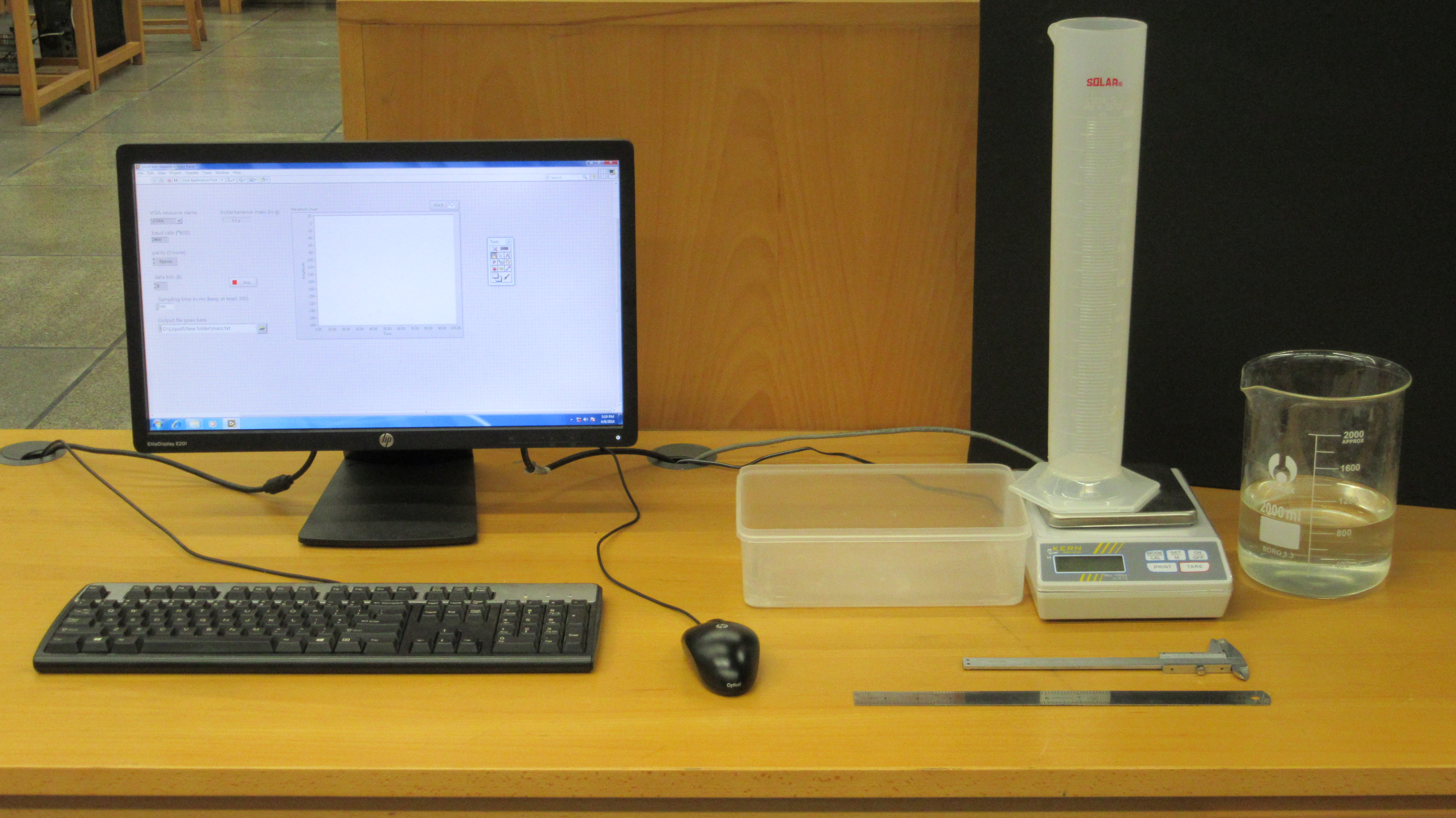

1. Experimental apparatus

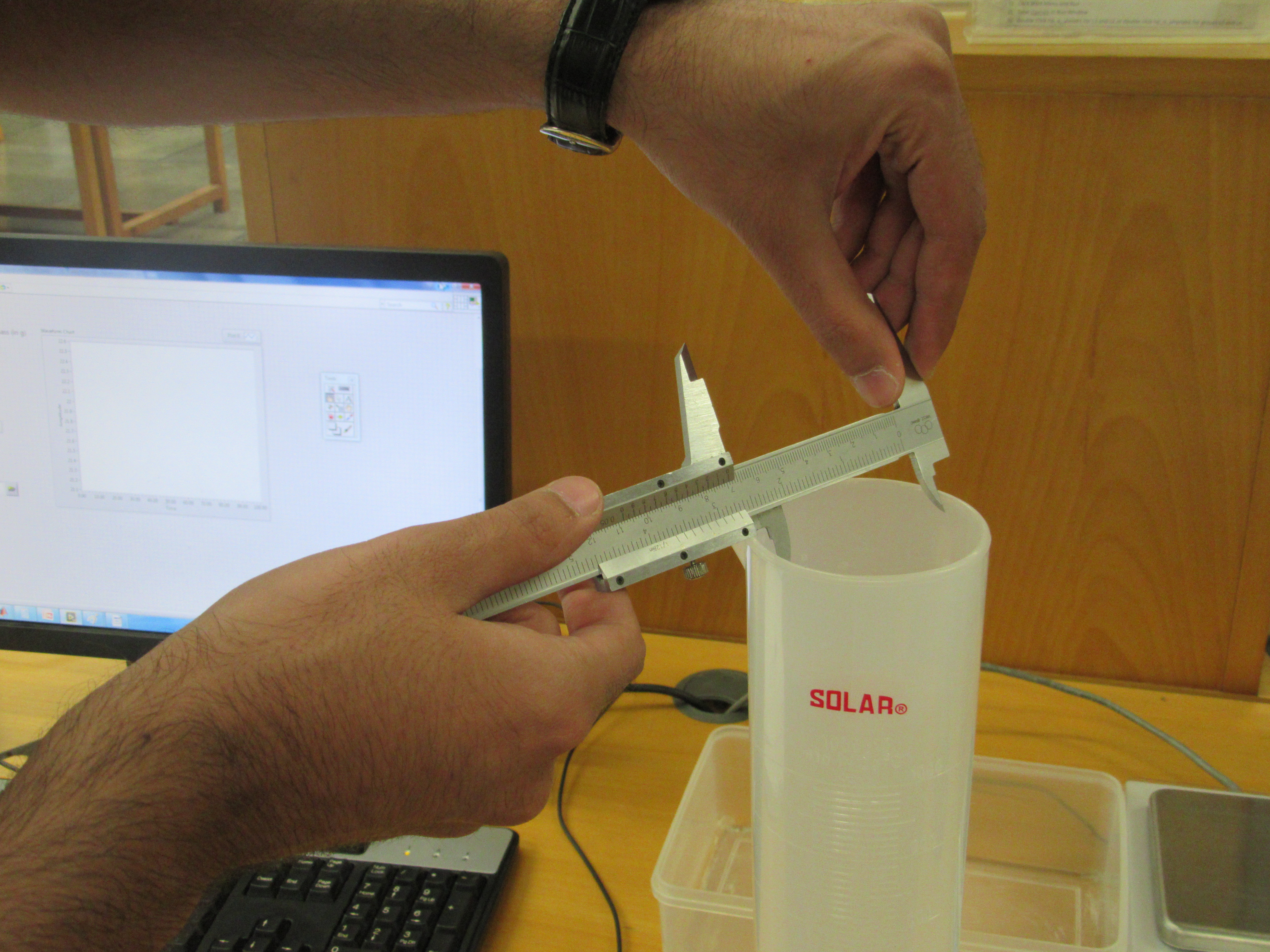

2. Measure the internal diameter of cylinder

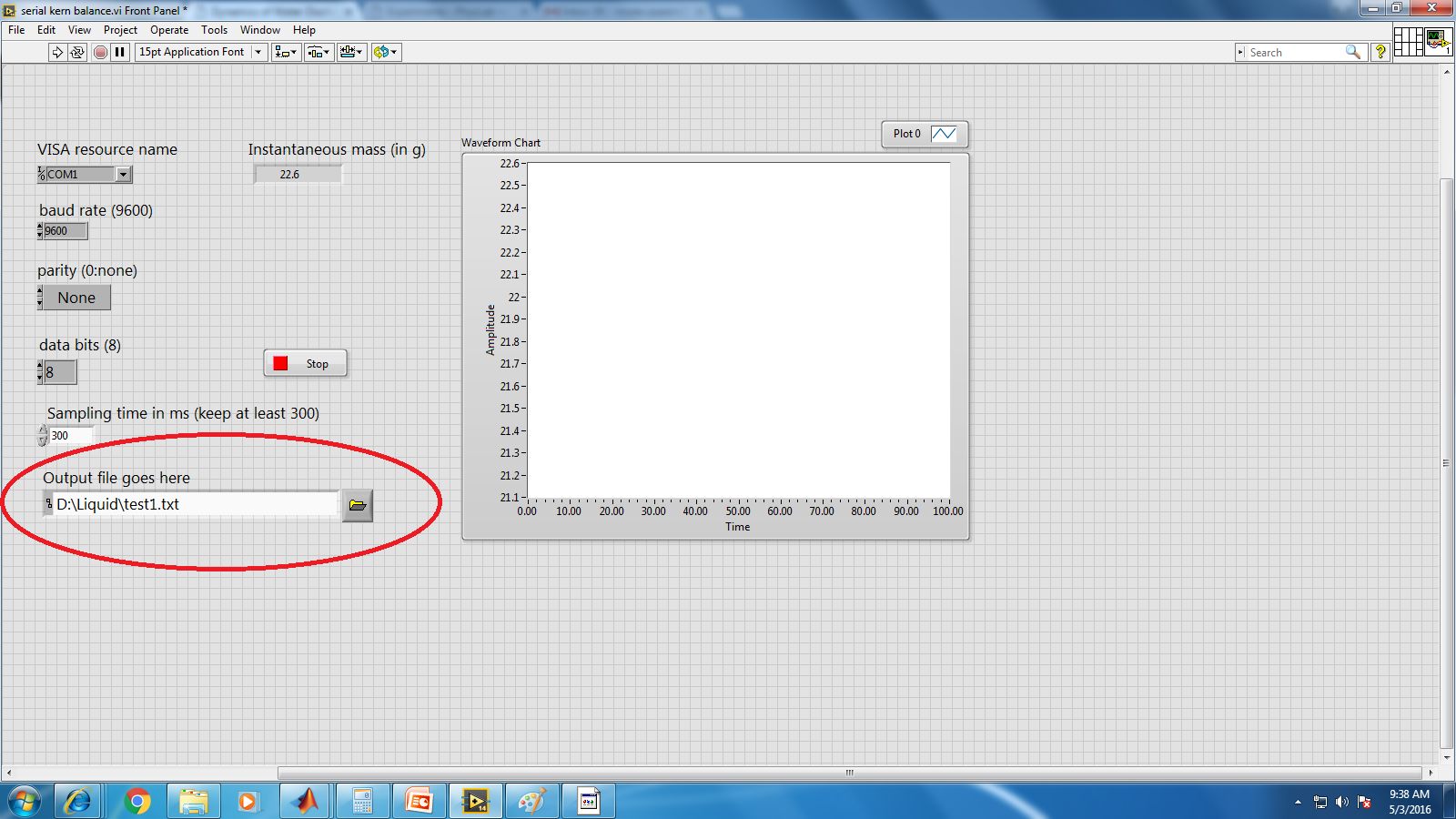

3. Prepare the LabVIEW file and give output path for data collection

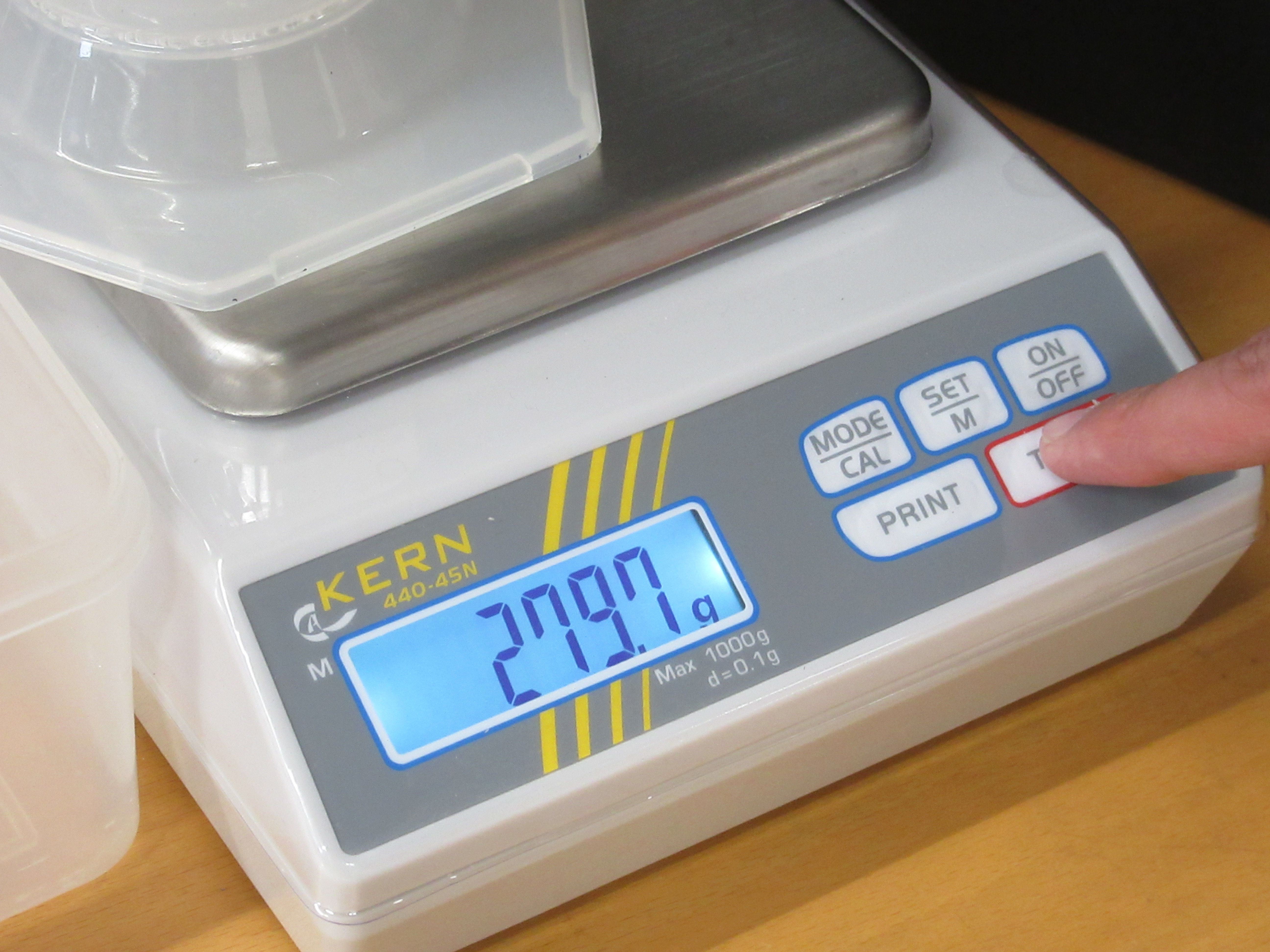

4. Press the TARE button to remove weight of cylinder from the subsequent readings

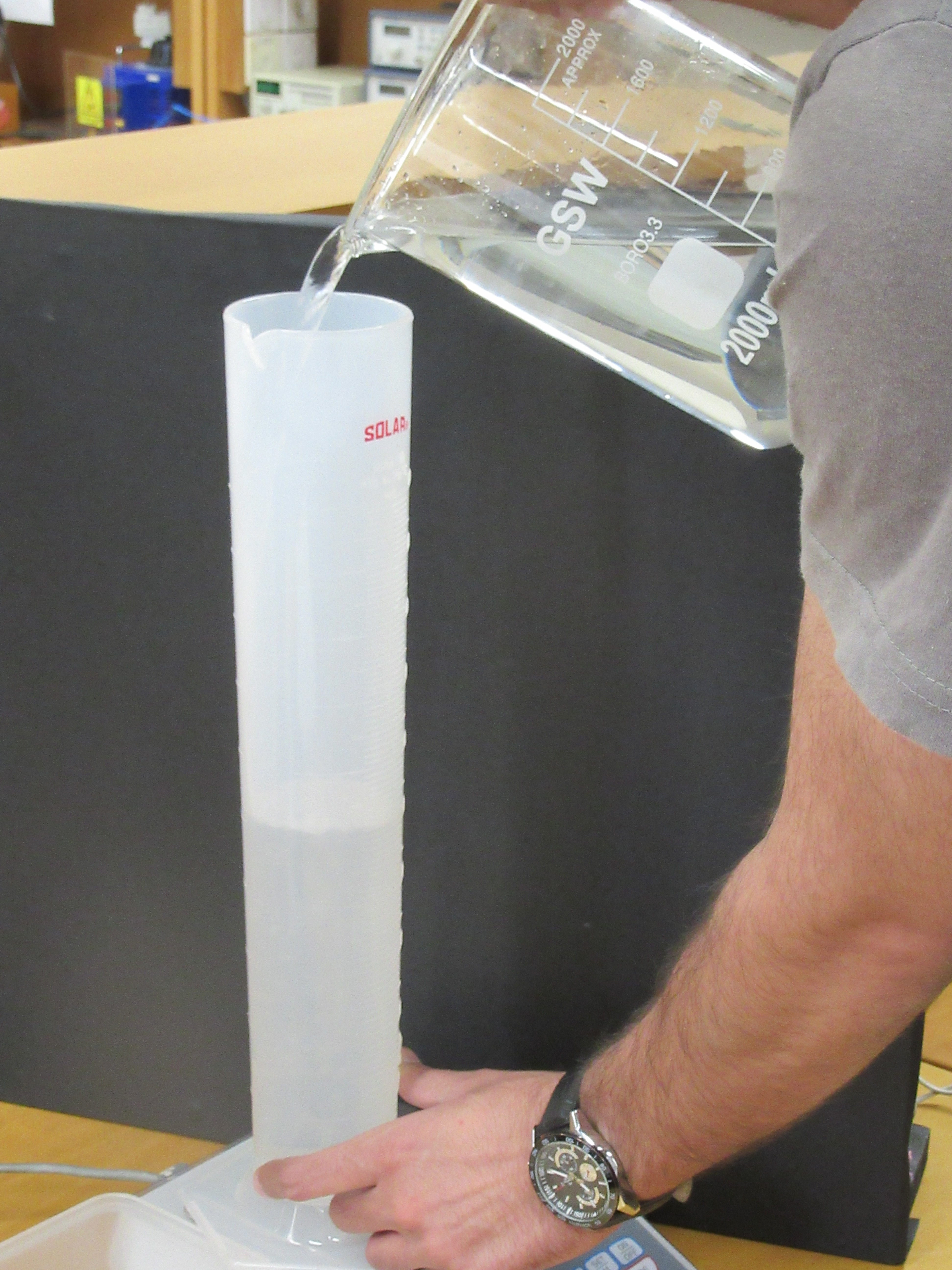

5. Using beaker fill the cylinder with water

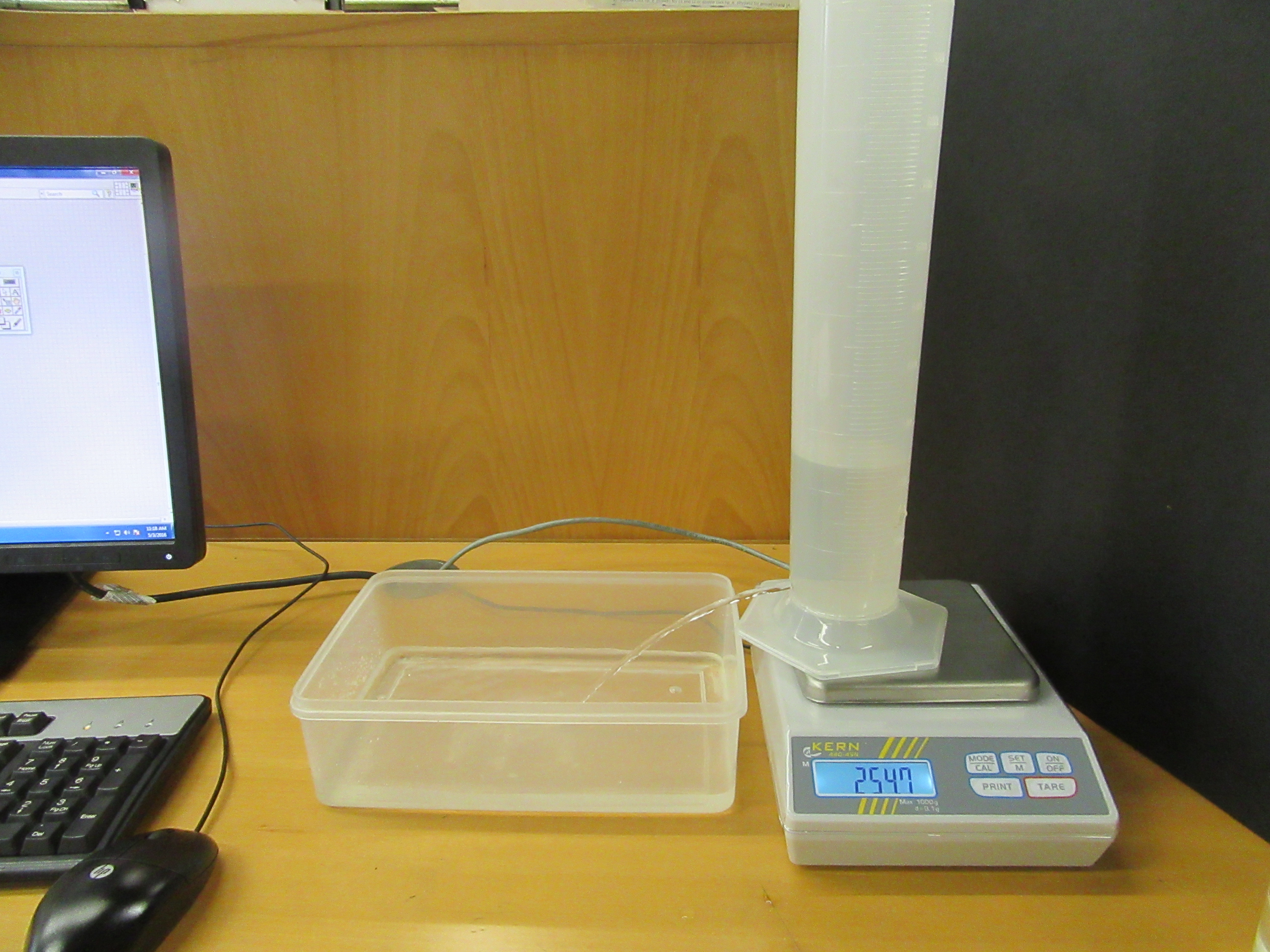

6. Let it discharge into the plastic box

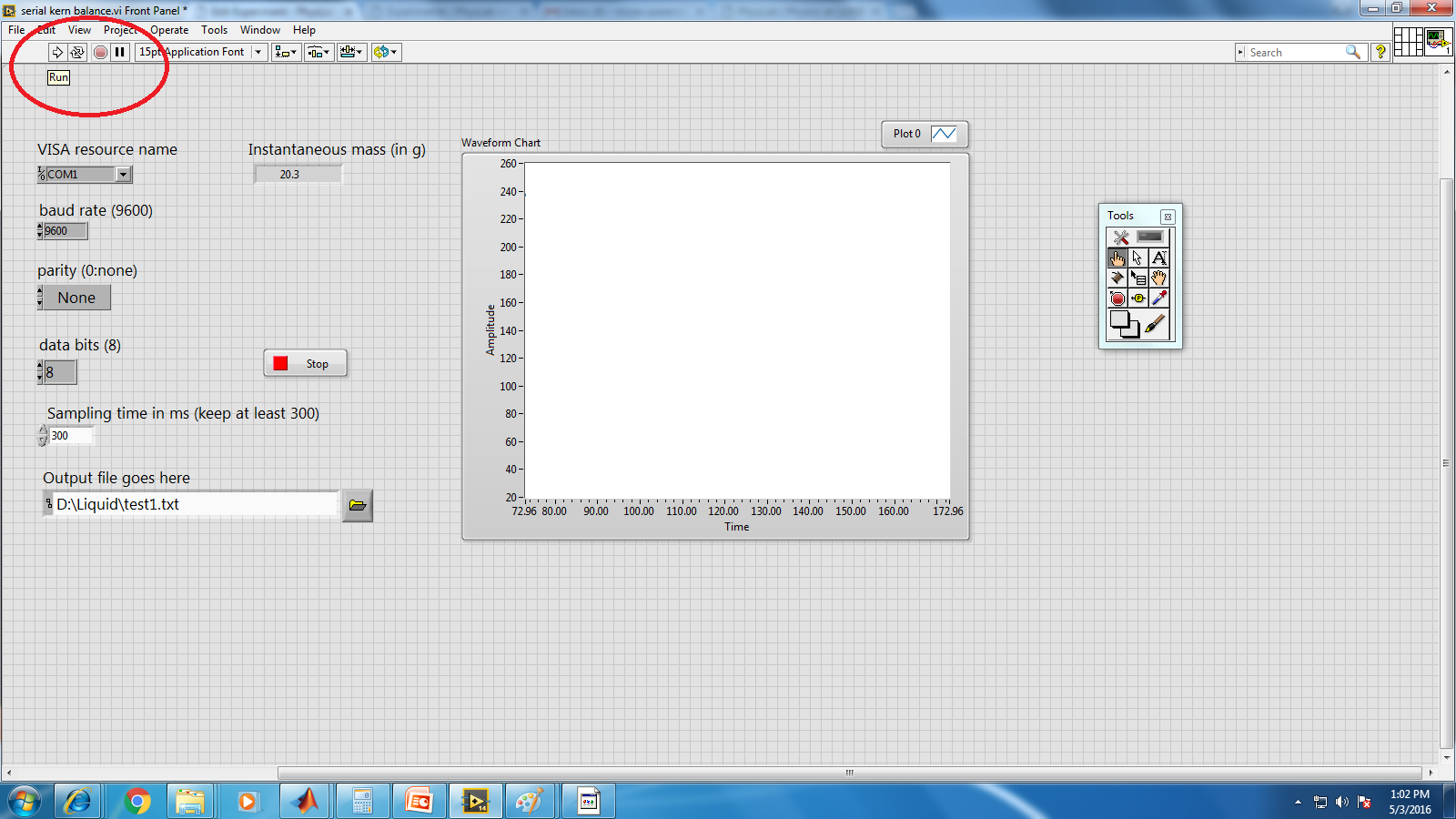

7. Press the Run button in your LabVIEW file to start collecting data

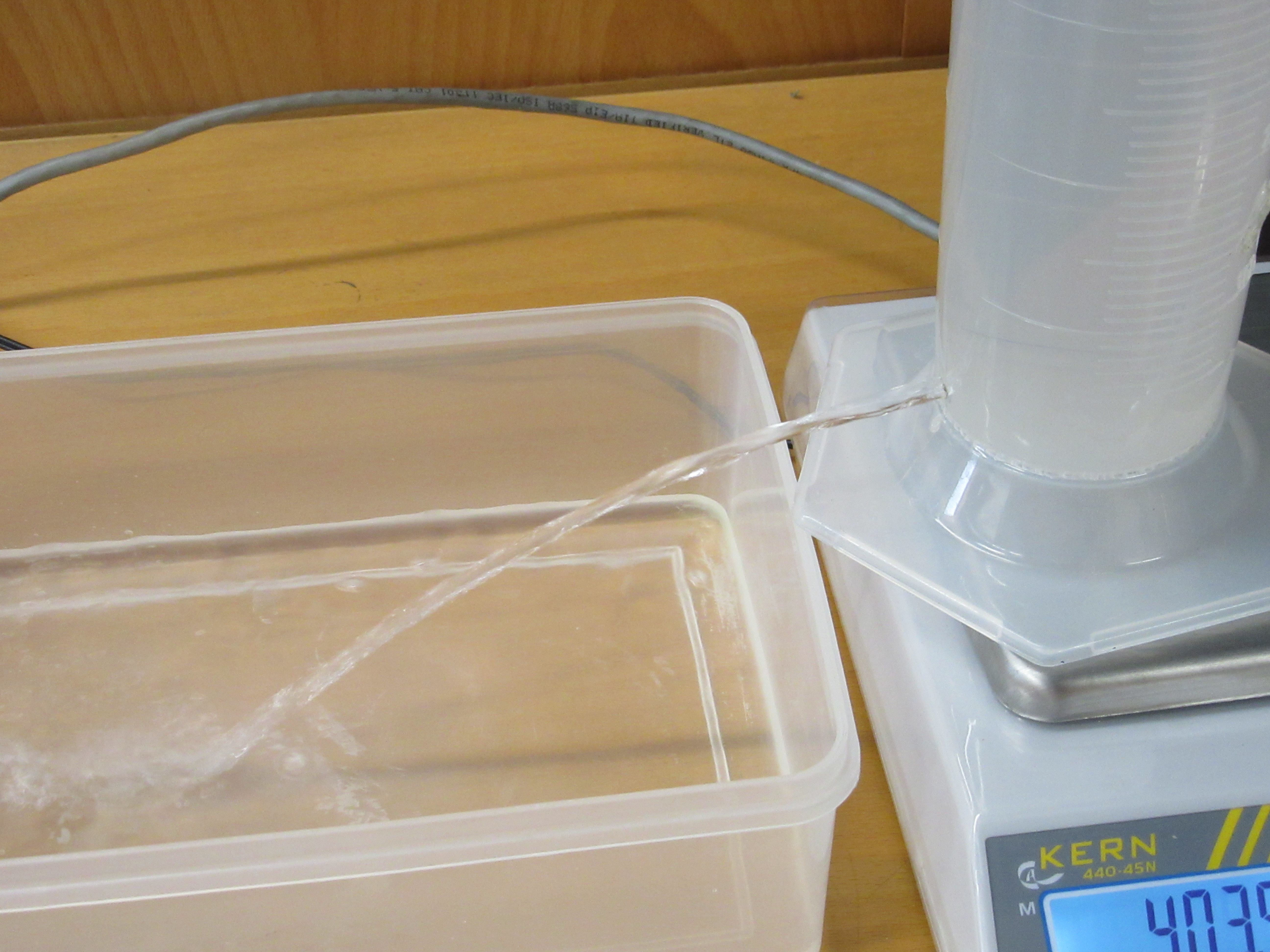

8. Keep collecting
9. You will get this rate of mass loss vs. time graph

10. Be cautious to avoid spillage near the end

Lab 1 | Tags: fluids
