| Student Manual |  An experiment has been set up for you. The arrangement is similar to what is provided in Experiment 1.6A. We have a resistor R in series with a capacitor C. The capacitor has a known capacitance. Measure it using the provided meters. A sinusoidal input of amplitude Vo, and frequency f , is applied and the voltage amplitudes across the resistor are measured at various frequencies. The inputs and outputs are through a computer equipped with a data acquisition board. |
| Software Code | Labview codeshttps://colab.research.google.com/drive/121VnN-DPXgnUjeWJsldje8upq7GUdkp-?usp=sharing |

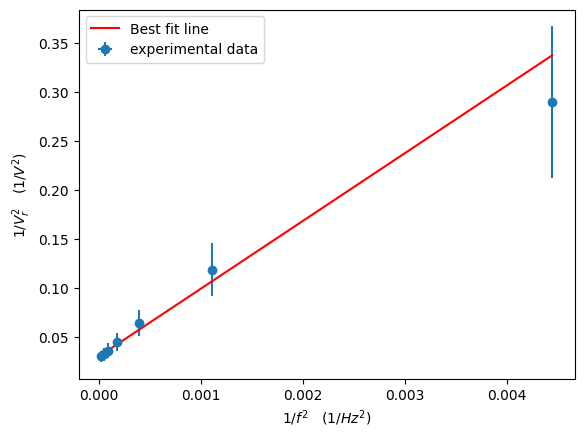

| Sample Results | Plot between linearized variables with error bars and a linear fit |
| Experiment Code | 1.6B |
| Version | 10 December 2015-2015-v1 |
Further Readings and References
- Estimation, uncertainties and all thatQosain Scientific and KSS's Phenomenon Lab,https://qosainscientific.com/phenomenon-lab/, Mustafa Shahzad, Jamal Liaqat and Muhammad Sabieh Anwar, (2026).
Pictorial Procedure
This video gives you a walk through on how this activity can help explore uncertainties, their propagation, linearization of data, fits, both weighted and unweighted.
